How to Outsource Medical PCB Parts

It makes no sense of investing heavily in production equipment if you want to make a few porotypes. Instead, it makes sense to outsource your Medical PCB Assembly and prototype manufacturing from a reliable supplier. But why not start a production line for your medical PCB parts? Well, there are several reasons why it is not a wise investment.

First, it is a heft investment. Since your primary business focus in not PCB assembly, investing in such a production line will be a waste of resources. Such assembly lines will cost you an arm and a leg. Also, with two businesses, you will not be able to focus on your medical supplies business. Also, starting a PCB assembly line requires a highly trained workforce and special machines, which are costly and require specialized skills to run. No matter how you look at it, ordering your medical PCB parts from a Medical PCB Assembly company is the right thing to do.

What should I pay attention to when looking for a medical PCB assembly company?

Now that you know that ordering your medical parts from a PCB assembling company is the right thing to do, where and how do you find a reliable assembler? Well, it might sound easy to head online and search PCB assembler’ on your favorite search engine. But you will immediately realize that there are many such companies and the choices will overwhelm you. If you are not keen, you may end up with the wrong company, and this only means you will get substandard medical PCB parts. This article will list tips to check for when looking for a Medical PCB Assembly company.

Many PCB assemblers will offer an instant quote mechanism on site for manufacturing and assembling PCB parts and prototypes. This saves you time when you are comparing different PCB assemblers. Make sure the quoting system allows you to enter every detail, such as thickness, milling, copper thickness, board material etc. This will ensure that you get a precise quote without surprises later.

Normally, the price per board decreases as quantity increases. This is due to the spiking setup cost of circuit board manufacturing. Some assemblers use a system where they combine boards from several clients. This way, they can distribute the cost of setup to several clients. When designing some medical PCB parts, you will start with a prototype, and since you do not want to have errors later, you should start with a few parts. Once you are sure what you want, i.e., when the prototype matches your needs, you can then go ahead and order quality medical PCB parts from a leading Medical PCB Assembly company.

One limitation with small quantity medical parts or prototypes is that the choice and thickness of the material is limited. If you consider using unique material, then chances are there won’t be any clients using the same material as your needs are custom. This will usually lead to high costs, but it is worth it as you will get custom parts or prototypes. Once you test the prototype and it is what you need, you will enjoy affordable prices once you get to mass production of medical PCB parts.

When looking for Medical PCB Assembly company, be sure to check to work with one that supports the file format you are providing. The most common format for medical PCB manufacture is Gerber format, but some vendors also accept board files types from some common PCB software products. Some PCB assemblers also offer in-house PCB design. If you handle the design work yourself, then picking an assembler offering professional design services is very useful in case there are problems with your order files. If your vendor can make some quick changes to your design, this will save you time and minimize delays.

When hiring a Medical PCB Assembly supplier, ensure that the company can assemble all the package types that your PCB board uses. Some assemblers cannot assemble some types of IC packages such as chip-scale, BGA, and some tiny component types. If you’re not sure if the PCB assembly company you are about to hire offers all these, be sure to contact them, let them know your needs, and explain what they can and cannot do. Do not compromise on quality as there many PCB parts manufacturers that can handle your needs. All it takes is research to find the right one.

Some PCB parts manufacturers will carry an inventory of standard SMT parts and also and through-hole parts. You will save lots of time if you can pull fro, your assembler’s inventory rather than buying each part yourself. Be sure to specify to your assembler the components you wish to restrict yourself when you are uploading your bill of material. This saves time and ensures convenience from both sides. It is an essential consideration.

Most Medical PCB Assembly companies also offer to manufacture SMT stencil, a requirement for PCB assembly. Always ensure that you order stencil when ordering the circuit boards to avoid delays. It will be great to get your parts on time, as this is good for your business. Therefore, it is essential to consider working with an assembler that offers a variety of services and parts.

Things to consider before ordering PCB medical components?

When ordering PCB medical parts, the last thing you want is getting parts that are malfunctioning or not working at all. Therefore, it is crucial to look for Medical PCB Assembly supplier that they have qualified in house engineers and experts to test your parts before delivery. Many suppliers will test your PCB parts before mass production to ensure functionality and durability. Also, it is critical to ensure that the assembler is licensed and certified. Besides having experienced team and certifications, you should also ask if the assembler offers a guarantee on quality for the PCB parts supplied. If they believe in their products, they should offer a warranty. This will build trust between the clients and the PCB manufacturing company, which is good for business.

Lastly, when ordering or finding a PCB parts vendor, be sure to check on delivery services. How does the delivery system work? When do you expect deliveries after placing an order? Who pays for the deliveries, and which locations does the company deliver? Getting all these answers will go a long way in ensuring you make the right decision.

The Best Digital PCB Assembly and Designing Process

Electronics are a vital part of our day to day lives. Everything from the smartphones to cars are available with electronic components. The Printed electric board can be said as the heart of all electronic components, which is also known commonly as the digital PCB.

A lot of people are immediately able to recognize printed circuit boards just by seeing these. These are green chips that get covered in copper parts and lines that you’ll find at heart of gutted electronic devices. These are made through copper lines, Fiberglass along with other parts of metal, all these boards remain held together with epoxy and are insulated through soldering mask. The solder mask would be where the characteristic green color would be available from.

However, did you ever observe the boards with the components stuck solidly on? These can never be regarded as only PCB board decorations. Advanced circuit boards are not able to provide functionality until components become mounted on it. PCB with the components mounted on is known as assembled PCB and the process of manufacture is known as the digital PCB assembly or in short PCBA.

The copper lines on the bare board are known as traces, the electrically linked components and connectors to each other. They run the signals between all such features, letting circuit board for functioning specifically in a designed way. Such functions mainly range from simple to complex, yet PCB size remains smaller compared to thumbnail.

How such devices are made?

The digital PCB assembly process is quite simple, and consists of various manual and automated steps. In each step of the process, the board manufacturer can select from both the digital automated and manual options and the one for selecting. For helping in better understanding of digital PCB assembly process from the start to finish. Thus, each step can be explained below.

The basics of PCB design

PBCA process begins mostly with basic PCB unit: base, consisting of various layers, with each one playing significant role in final PCB functionality. All such alternating layers have:

Copper: Thing conductive copper foil gets added for each of the functional PCB side – on one side if this remains a single-sided PCB, and on both sides if the PCB is double sided. The layer is of the copper traces.

Soldering mask: On copper layer top there is solder mask, providing each PCB with the characteristic green color. This insulates traces of copper from unintentionally contacting various other conductive materials, that results in a short. To simply state, the solder is meant for keeping everything in place. Solder mask holes are present where solder gets applied for attaching all board components.

This is an essential step to smoothly manufacture the PCBA as it can stop soldering from taking place on the unwanted parts with the avoided shorts.

The Silkscreen: White silkscreen is final layer present on PCB board. The layer is vital for adding labels in PCB in form of symbols and characters. This is ideal for indication of each component’s function on board.

The materials and components largely remain identical across all of the PCBs, with substrate being the exception. The PCB substrate material keeps changing accordingly with certain qualities – like bendability and cost – each designer looks for in the newest finished product.

Three of primary types of PCB are:

Rigid PCB: The common PCB base type is the rigid one accounting for most PCBAs. The solid rigid PCB core provides board with thickness and rigidity. The inflexible PCB bases are composed of all different materials. Common one is the fiberglass, otherwise it is designated as the “FR4”. The less expensive PCB can be made with materials such as phenolics and epoxies, though these being less durable ones compared to FR4.

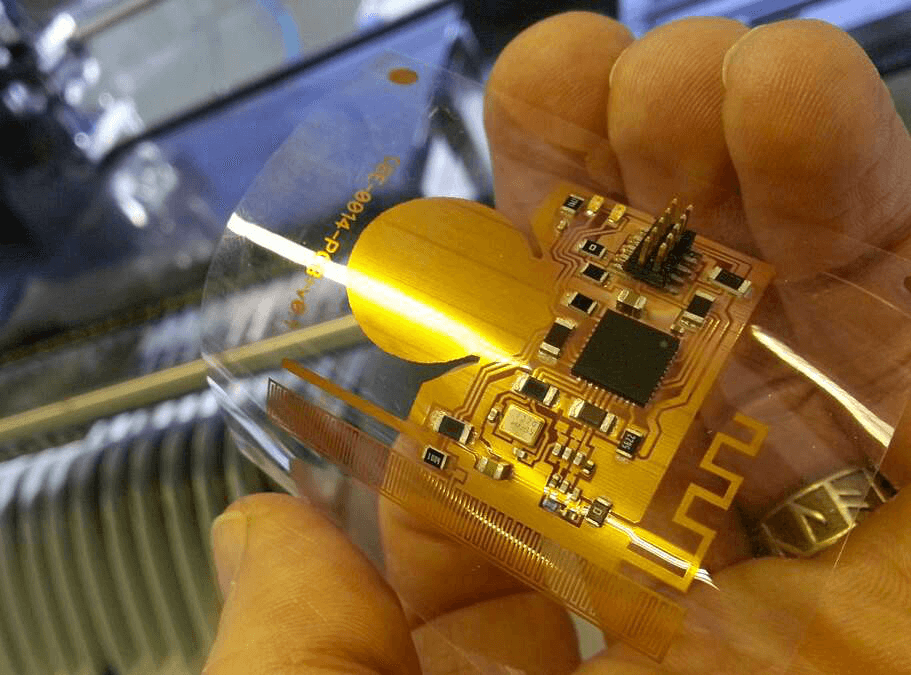

Flexible PCB: the digital flexible PCBs provide more pliability compared to rigid counterparts. The digital PCB materials are bendable with high-temperature plastic such as Kapton.

Metal Core PCB: The boards can be another alternative to conventional FR4 boards. These are made through metal core; the boards can spread heat efficiently compared to others. This is helpful in dissipation of heat and protection of heat-sensitive components of digital board.

Thru-hole electronic components for digital PCB assembly

Electronic components with leads out and inserted through tiny PCB holes meant for soldering are known as thru=hole electronic components. The soldering or assembly process meant for such components also include hand soldering or the wave soldering – the Wave Soldering – PCB assembly process in solder in solder bar form are in high-temperature bath.

The solder remains in bath in the molten form and different forms with waves at high temperatures.

The temperature range can depend on molten form bath and creates wave at higher temperature.

The temperature range would depend on solder type

Conventional lead/tin solder is available with low melting point compared to lead-free one. PCB with thru-hole electronic component in the holes gets passed over the molted solder with conveyor belt help.

Entire wave soldering PCB assembly process requires following steps:

• Electronic component insertion
• Flux application
• Preheating
• Wave Soldering
• Cleaning and
• Testing

After the wave soldering of digital PCB assembly gets completed, it is now time for cleaning and testing. In case there is any defect for solder joint like blow hole or pin hole, it is again sent for rework, done through hand.

Manufacturing units available with lesser work load or reworking/repair jobs use hand soldering. Soldering iron or soldering station and solder flux and wire is mostly used for the process.

Digital PCB assembly with surface mount technology (SMT)

The Surface Mount Technology or the SMT is the PCB assembling process meant for the digital components of SMD. These components don’t have legs or leads. These get mounted on circuit board surface. The electronic components, equipment and various other soldering material is usable in the assembly process and is quite different from the thru-hole process of soldering.

Although the hand soldering is known to work fine for the PCB assembly requiring a lot of components present on both of the sides among which the SMD components remain more compared to the THT components. Therefore, being confronted with situation with small THT components required, the wave soldering is the suggested method.

Digital PCB assembly needs to go through various technical and complicated processes and various elements must be taken into consideration with little modification leading to high changes in costs and product quality.

Selection Guide for PCB Assembly Service

PCB parts are always on demand. Therefore, getting the best means, you have to work with the best PCB assembly company. The best part is that there are tons of  PCB parts manufacturers out there, and getting a company that suits your needs will be easy. However, before you go outsourcing PCB parts, understand that not all companies are reliable. Some manufacturers are just there to make money from unsuspecting customers. Others will offer quality products but at a hefty price. This, therefore, means you have to do due diligence when it comes to PCB Assembly Outsourcing.

PCB assembly comprises several electronic components that make electronic devices functional. The assembling process involves multiple processes that include fixing elements on a PCB board, soldering them, and inspecting and testing the components. Since setting up a PCB assembly line is very expensive, companies outsource PCB assembly services from reputable companies that focus on such services. There are hundreds of  PCB manufacturing and assembly companies, and when it comes to PCB Assembly Outsourcing, be sure to do good research and only work with a reputable firm.

Most SMEs rely on contact PCB manufacturing services, and there are several benefits of outsourcing PCB parts. This article will explore these advantages.



Save investment and the cost of labor

The cost of starting a PCB assembly line is very high. Unless you’re planning to venture into PCB manufacturing as your main business, it does not make economic sense to start a small PCB line to supply to your small electronic business. PCB Assembly Outsourcing is the most economical way to ensure that you get quality PCB supplies on time without incurring high and unnecessary costs. Besides, by outsourcing PCB parts, you will be sure to get quality and custom parts that suit your business. This is because the manufacturers have invested heavily in the right equipment, skills, and workforce to meet different customer needs.

Save time

If you’re into the electronic business, then you are in constant need of PCB parts, depending on your customer’s orders. Therefore, by outsourcing PCB parts from reputable manufacturers, you can be sure of timely deliveries. The PCB assembler endeavor to deliver quality parts on time keep businesses going. All you need is to order a few weeks before to ensure you get your parts on time.

Benefit from specialized skills

Manufacturing and assembling PCB parts requires special skills and equipment. The only way to get quality parts is to consider PCB Assembly Outsourcing. The manufacturers have the skills, workforce, and the right manufacturing tools to ensure you get quality parts that suit your needs. By getting your PCB parts from reputable assemblers, you will enjoy professional services, for example, testing parts to reduce risks of future problems.

Focus on core competencies

By outsourcing PCB parts, you will have time to focus on bettering your products to suit your customer needs. Manufacturing and assembling PCB parts take lots of time and need attention to detail. You cannot afford to manage your business and, at the same time, manage to assemble PCB parts. If you try it, one business will fail. This is why you need to outsource parts as you focus on growing your business. Let the experts handle assembly while you improve and better your business.

With these benefits, I am sure you will make a better choice the next time you need PCB parts. But how and where do you outsource PCB parts? Well, when it comes to PCB Assembly Outsourcing, you need to know your needs first. What parts do you need? Do you have any custom needs? How many parts do you need? When do you need delivery? Do you require testing and other professional services? You need to know all these before ordering PCB parts. Once you list all your needs, you are ready to start shopping for the best PCB parts manufacturers.

Selecting a PCB parts manufacturer

When choosing a PCB assembly company, you need to be careful as not all companies are reliable. Some companies will delay your PCB supplies, while others will deliver substandard products. Others will deliver but overcharge you. Therefore, you need to get a reputable manufacturer to ensure you get your deliveries on time, at an affordable price, and to be sure of the quality of the parts. But what do you check when choosing the PCB Assembly company?

Check if the company has the right infrastructure

Electronics parts require precision, so you need to check if the company you intend to work with has the right infrastructure. This may include having the latest SMT and DIP lime management capabilities. Also, check if they have staff with the right skills and years of experience. Also, consider the speed of their SMT lines. A speedy lie will ensure timely delivery, and this will keep your business running without problems with deliveries. Check on the international speed standards before settling on any PCB manufacture or assembler.

Customization

When ordering PCB parts, you will always have custom needs and this is why you need to get to consider PCB Assembly Outsourcing from a company that allows custom services. This way, you can order any time and list your needs and the assembler will deliver custom parts on time.

Material used

When ordering PCB parts, always do a background check to know what materials the PCB assembler is using. Remember that substandard products mean that your electronics finished products will as well be substandard. If the manufacturer uses material that you do not intend to use, you can always ask them to use a different material, i.e., customize your supplies. Avoid ordering from assemblers using low-quality materials.

Delivery service

If you are considering PCB Assembly Outsourcing, be sure you are ordering from manufacturers that offer delivery services. Not all assemblers offer assembly services, and some offer this service but at a fee. Always ensure your potential manufacturer can deliver to your location. Also, understand the delivery process and timelines. For example, know when to place an order to get deliveries at a specific time. Go for a company that offers a guarantee on the delivery timeline.

Uses of LED Lighting PCB Assembly in Different Industries

As the printed circuit board technology goes through a lot of evolution, this paved ways for creating host of newest innovations in products. One such prime example would be the development for PCB for the LED lighting. In this product, the LED gets soldered to circuit board and also features chip for producing light when there is electricity connection. Thermal heat sink along with the ceramic base gets used for bonding chip.

LED PCB board generates higher heat volume, making it quite difficult for cooling through the conventional methods. Consequently, the metal core PCBs frequently get selected for the LED application because of enhanced ability for dissipating the heat. The Aluminum in particular often gets used for manufacture of the circuit boards for LED lighting.

Normally aluminum lighting PCB assembly has thin layer present with thermally conductive dielectric material for transferring and dissipating heat with great efficiency compared to conventional rigid PCB.

What is LED PCB assembly?

The processes meant for mounting all electrical components on PCB is known as PCB assembly.

This also depends on the task nature; you can use various techniques and methods as well. You’ll notice this later in the guide.

Remember, the LED printed circuit boards can be made through aluminum materials. With aluminum base a connection is established between IC and heat sink. It can easily resist heat.

LED lighting PCB assembly applications

The LED lighting PCB assembly technique gets applied in the automotive, telecommunications, automotive, along with assembly of medical equipment.

Let’s get into details:

Telecommunications manufacturing equipment – A lot of telecommunication equipment are made through LED lighting PCB assembly. This is due to the assembly of LED PCB being mounted through aluminum.

With aluminum dissipation and heat transfer becomes better which be a basic requirement for all such equipment.

Automobile industries – In cars aluminum LED PCB assembly is required in manufacture of headlights, indicators and brake lights. The LED PCB is essential in the automotive manufacturing industries as the aluminum provides more durability for all these parts.

Computer Manufacturing Companies – LED PCB Assembly recently gained more interest with computer manufacturing companies. Computers are known to have heat sensitivity, especially the CPU and power unit.

All the parts require materials that easily transfers and dissipates heat in an efficient manner, making LED lighting PCB assembly as the most recommended choice.

Medical equipment – A lot of medical examination and surgical equipment are designed with LED lights that are high powered. Therefore, these require ability for transferring and dissipating the high heat, making the PCB assembly with LED lighting the best available choice. The equipment also becomes more efficient and long lasting.

Aluminum types used in LED lighting PCB assembly

Three aluminum types are usable in manufacturing LED PCB.

Flexible Aluminum – This can be made through ceramic fillers with the polyimide resins for better flexibility and insulation.

Hybrid Aluminum – The non-thermal material FR4 gets merged with the aluminum metal helping in providing rigidity to LED PCB.

Multi-layered Aluminum – This is meant to get efficiency in thermal conductivity and high heat transfer and is required in complex LED PCBs. Due to this, the multi-layered aluminum is quite relevant for such purpose.

These are applicable as LED lights PCB require less power.

Also, without any mercury they work effectively and last longer compared to other lighting PCBs.

Applications for PCB LED

The PCB LED lights to get incorporated into a lot of applications for lighting because of their combination of great energy efficiency, maximum flexibility of design at low cost. Some examples are the automotive headlights, military field lighting applications, airport runway landing lights, lighting for highway tunnel, street lighting, lanterns and flashlights, photovoltaic lighting (solar), signal and traffic lighting, operating rooms lighting in hospital, high growth plant lighting along with others.

Lighting is Key for assembly of printed circuit board

Manufacturers of global electronics have a lot of lighting PCB assembly machines available in operation at same time in busy and fast paced environment. Assistance from operator is a frequent requirement as the product runs out, PCB boards get completed, or there are issues that arise on line.

With bust working environment, this can be simple for missing when the machines require attention which can then significantly affect throughout along with workflow on line. This is a simple to see indication system that has to be put in place for prevention of poor maintenance of machine.

Challenges for indication with PCB manufacture

Electronic assembly stations are typically heavy automated processes and these become hectic and noisy environment. The operators work on different machines at same time with common multitasking. More compact indicators like tower lights or buttons remain overlooked when employees frequently move from station to station. Higher noise levels prospectively limit effects by audible alarm indicator as well.

With the constantly evolving electronics industry the manufacturers can often make changes to the workspaces and floorplans that get organized for adapting with changing demands. Lighting products must have simple installation with removable hardware for adapting in a much better way to environment.

With PCB LED lights you get versatility for lighting applications as you can install only one light for indication and illumination, while simplifying the list of spare parts while improving visibility.

Making PCB fabrication simple with LED technology

LED lights are among the greatest innovations for assembly lines of PCB. These are bright LED lights and can be seen in different varieties for attaining both bright illuminations along with status indication that is vividly visible in a single rugged fixture.

Positioning LED lights right above assembling machines can illuminate work area for assisting with operations but this can also get programmed for filling work area with the colored lights for corresponding to condition on machine. The indication type offers unmistakable alerts for staff in area.

For instance, in case any jam or error is there on machine the LED lights would change color and cover the entire machine with a particular color so operators are easily able to notice the machine that requires attention.

Machine operators can be focused on normal sighting lines without the need to look here and there to get indication while maintaining efficiency of production. Lights are also able to create high contrast to get assistance with component inspection.

LED lighting PCB assembly is vital in the present-day industrial development. A lot of electrical devices get innovated and old ones get improved.

The LED PCBs become useful because of the fact that these are made through materials for transferring and dissipation of heat. The characteristic helps in increasing durability of the device.

With recent upgrades in technology mass production is also possible. As consumers are preferring light, durable and effective devices, the LED PCB assembly technique is quite relevant in the present world.

What to do if you want to find the right PCB manufacturer

Are you’re in the market for PCB parts? You will realize that there are lots of manufactures out there. Keep in mind that not all manufacturers are the same, and you will end up with substandard parts if you are not careful. And if you get quality PCB parts, you may end up paying an arm and a leg. But how do you find the best PCB Manufacturing China company? Well, it can be a tricky affair. PCB manufacturers need to have the experience and expertise, and when placing your order, you need to check critical details. This article will list tips to helps you find the best PCB manufacturer in China.

Check the basics

Before you decide to order any PCB parts, you need to do a background check. You need to know how long the manufacturer has been in business. If they have been operating for many years, it means they have the expertise and experience as well as the required machines and workforce to handle your order professionally. The bottom line is knowing the manufacturer inside out, including but not limited to knowing if he had past problems delivering to past clients. Check the testimonial section and understand what the past clients are saying about the manufacturer.

Can they meet your requirements and expectations?

This is a critical question that you need to ask when engaging any PCB manufacturing company. Some PCB Manufacturing China companies only deal with a standard set of tolerances and specifications. This may be because their production capabilities are stretched or limited. If you need specific PCB parts, then such companies will not help you. Find a PCM manufacturer that offers a range of products and one that can customize your order to suit your needs. There are many manufacturers out there that can handle such orders and customs specifications, and all you need is reach and narrow your scope. Do not settle for less or adjust your needs; companies are always looking forward to receiving your custom order.

Who are their customers

PCB manufacturing companies work with various clients in the electronics industry. Some clients deal with military orders. If you need to understand/know the manufacturer better, you need to have a good look at their clientele and the kind of orders they ask for. The best part is that reputable PCB Manufacturing China companies will list their clients on their website from where you can make some follow-ups. You can search the clients online and know what kind of business they are involved in. Sometimes you can even contact them and find out their experience with the PCB manufacturing company. If you are lucky to get a reply, you will get firsthand information regarding the PCB manufacturer in question. If you get happy clients or good recommendations, then you can go ahead and place your order with the PCB manufacturer in question.

Do they offer engineering support?

Before you head to the manufacturers’ website and place your orders, hold on, and find out if they offer engineering support, which is an after-sale service. Before spending your hard-earned money on the fabrication of  PCB parts, you need a manufacturer that will test all aspects and completely surrender to your needs. The manufacturing companys’ engineers need to test all the designs to avoid possible errors in the future. This will as well ensure you are getting custom parts and also advice on maybe improvements that would make your parts better. A good PCB manufacturer will as well spend their time enhancing their capabilities and prospects. All this will ensure your PCB parts meets not only your needs but also quality standards. Again, this should be free of charge on your part.

Quality matters

When it comes to PCBs, quality is critical. You are ordering custom parts and paying a hefty price; therefore, there should be no compromises on quality whatsoever. With PCB parts, it is all about precision, and so you should consider quality first before ordering from any PCB manufacturer. Before placing your order, ensure that the PCB Manufacturing China company you are buying from offers a guarantee of quality. Do not just trust their word, but check their capabilities, past projects as well as talk to their past customers. Be sure they can manage your order by checking if they have made such PCB parts before. If they have experience making such parts, you can get quality parts that meet your needs. Also, check their testing process more so when it comes to connectivity.

When can they deliver?

When ordering PCM parts, you have a timeline on when you need the parts. As long as you order early enough, you should not face any insolvencies. But since the process is not always rosy, you need to check the manufacturers’ website and see their delivery timelines for the time the customer places an order. Some PCM manufacturers will require you to order a week before they can deliver. Be sure to check this and ensure it suits your needs. It is always advisable to order early enough to avoid the last-minute rush. Look for an honest company that will truly tell you how busy they are and when they can deliver to avoid frustrations.

Can they offer certifications?

Some PCB Manufacturing China companies offer fire resistance certification on their PCB parts, and you should check this and other necessary certificates. With certifications, you are sure of getting quality products, and in case of unseen eventualities, you can always ask for compensation. That is if the quality did not meet the standards listed in the certification form. Also, be wary of manufacturers that offer fake certification, and this is why you should focus on finding or working with only reputable PCB manufacturers. Ensure you are getting quality parts for the money you are parting with.

Who are their vendors?

Since every company has to rely on some vendors and suppliers, be sure to know these suppliers, before ordering from any PCB manufacturer. Once you get the list, check them online, and know if they are reliable. Know what others say about them and check the quality of their materials. This is a precautionary measure that will ensure you are getting quality PCM parts. Be careful about every aspect.

What makes a PCB Provider the best in the market?

A PCB Provider offers services such as manufacturing, assembling PCB, component sourcing, and other services. This technical work requires a right PCB service provider/manufacturer inorder to get the job done perfectly. A right provider can save time, effort, and money and offer job satisfaction.

What makes a PCB Provider the best in the market?

We shall see some aspects of the right PCB manufacturer/provider:

Quality of PCB- The primary aspect to look for is quality. This is essential as there should be no errors later on.

PCB quality is based on:

• Appropriate dimensions of the board
• Bare Board test passed PCB
• Precisely drilled holes and positioned exactly
• Board warping is minimal.

The best PCB manufacturer/provider shall compromise on the quality and maintain consistency in their quality. They will not deteriorate post main orders. Qualitative mistakes can harm the assembly and the business. This is why PCB quality is the key.

Should meet the suitable requirements

A right PCB manufacturer/provider can work with your specifications. This implies that the files are accepted in the provided format. The PCB specifications such as PCB material type, layers, custom requests, tolerances, etc., should be met within the manufactured PCB.

Price

The product is cost-effective which makes it successful. However, the quality should not be compromised in the run. Quality and cost have to balance while manufacturing a PCB.

Time-efficient

Reasonable deadlines have to be met when manufacturing a PCB. A right PCB provider shall stick to the timescale requirements with a good delivery capacity of the PCBs. When expecting a quick turnaround the charges can increase and errors may rise. So the right manufacturer can assess quality and time as well as deliver the best quality PCBs in an appropriate time frame.

Work and cooperate

A right PCB provider is capable to operate along with PCB design and assembly as well. This is beneficial and also an essential factor to get your hands-on the best PCB manufacturing companies. This collaboration can resolve issues at a fast pace. Moreover, both parties can receive feedback on productivity and process development.

Source of material

A right PCB manufacturer/provider shall not look for cheap material sources. They put their full efforts into analyzing their source of the material. They make sure they obtain materials which are of good quality and consistent in their performance in every batch. The materials needed for the assembly/manufacturing of PCB adheres to particular regulations. They should not use hazardous elements in the manufacture such as cadmium, mercury, lead, and other fire retardants.

A right PCB manufacturer/provider meets the following standards/regulations:

• Restriction of hazardous substances-RoHS-This limits the use of harmful substances and its amount in electronics manufacture all over the world.
• Registration, evaluation, and authorization of chemicals-REACH-Use of chemical substances and their impact on the nature are evaluated in the electronics manufacture.
• Contradictory materials-According to this regulation, when sources ores are from zones under conflict, the supply chain of the raw material needs good visibility.

Testing of PCB- A provider/manufacturer of a PCB will ensure the quality test of PCBs. They shall carry testing on samples initially and then base the result to manufacture more. Each unit is tested finally to ensure quality consistency. Reach out to a manufacturer who can take up the testing this way to ensure good quality in PCBs.

Quantity

Be it on a small scale or high scale manufacturing, the provider should be able to meet the quantitative needs equally. Be it prototype PCBs or huge orders of PCBs, a right manufacturer will stick to the norms, cost, and timescales of delivery. However, it is best to approach a manufacturing company who’s matching up with your quantity requirements. This ensures PCBs you need without any hassles, unnecessary costs, and delays.

Beware

Some PCB manufacturers play the role of brokers rather than manufacturing themselves. They take up orders from different clients. Then they pass them to manufacturing companies. This way they charge more than the manufacturers themselves. Not only this, the product may not be manufactured to the standards and customer needs. The product may not guarantee its quality. However, it’s not to say that all of them are not good. Some good ones may provide you a good and advantageous order. But, all in all, a direct PCB manufacturer who is transparent and professional is best for further contact.

A top PCB provider company matches up to all the above requirements mentioned above. They provide an overall solution to the customer needs in PCB manufacture. They render their services to different consumer companies and sectors such as network, industrial, security, measurement, medical, automation, and counter devices. Their provider services are made available to critical environments where reliability and quality can be challenging.

The provider services include:

• Total PCB assembly
• PCB manufacture
• Component sourcing

This top provider of PCB services is reliable and professional. Their products come from the high technologically equipped infrastructure, good sourcing material suppliers, and stringently tested. They offer their customers with PCBs with real and reliable parts. They have been a team of experienced professionals who take care of each step of manufacture. The engineers evaluate PCB files and check for production suitability. This way they ensure the design to be ideal to get a PCB to the customer’s satisfaction.

Choosing them will enable you to get PCBs from a strong and experienced technical team that balances it with suitable costs. Once the customer requirements are submitted, they offer you a quick quote or response within a day. They offer timely deliveries as they are equipped with workshop stretched to 1000 sq. meters. They connect with logistic partners from all over the world to deliver their goods timely. Once the goods are received, you can connect to their customer service for queries and the follow-up product warranty.

Bottom line

Choosing the best PCB provider is an essential factor but not an easy one. But, getting the right one is a key factor in the assembly and manufacture of PCB. So, keeping the above points mentioned in the article and by spending some time on it, you can get your hand on the right PCB manufacturer. This can help you for a long time.

The Importance of Medical PCBs with Their Appropriate Design

In the serious and highly advanced medical field, high quality and reliability is the topmost priority – clients need the most reliable and technologically advanced solutions. One of the most integral roles in the field of medical equipment is the medical PCB that can be seen almost everywhere in laboratories, hospitals, research along with different related fields.

To have the right printed circuit boards, you’ll have to know the ins and outs of such PCBs.

Therefore, the guide begins by getting in depth of the medical PCB board, prior to knowing about its benefits. Thereafter, we’re also going to look at fabrication and design of medical PCBs.

Defining Medical PCB board

The chiefly sensitive medical sector deals with the precious human life. The sensitivity levels show that facilities and equipment usable in the sector have certain characteristics, first one being the precision.

Therefore, medical PCBs are printed circuit boards designed specifically for having medical facilities and equipment. All these PCBs hence have been specialized for different lab settings and care for being reliable in varied test scenarios.

Various medical machines and equipment made through these PCBs are heart monitors, blood glucose monitors, and X-ray computed tomography.

Other devices include blood pressure monitors, heart pacemakers, etc.

PCB Application in Medical Field

Main areas of the PCB use include:

Body temperature and Blood Glucose Monitoring: Examples are heart rate monitors, blood pressure monitors, blood glucose monitors, etc. Control Systems: the systems include equipment for controlling dispensation and flow rate, fluid infusion. Scanning: Ultrasonic technology and CT scanners are designed through PCBs

Internal Medical Devices: These devices are implanted in patient’s body due to certain medical conditions. For example, the Heart Pacemakers are run through minuscule PCBs.

On other hand Worn Medical devices are usable in monitoring health of a patient. Some examples are:

Scientific Instrumentation: The instruments are meant for studying disease trends and testing patient outcomes. Some examples are photometers, microscopes and compressor and generator control systems. Wireless form of communication: Walkie Talkies and instant messaging apps are effective communication forms nowadays.

Medical PCB importance and Benefits

As already mentioned, the medical PCB board is ideal in the manufacture process of electronic equipment and devices in medical use.

In this regard, all these equipment sets and devices made through PCBs benefited medical field in different ways like:

Getting Electronic Health Records – Since long, lacking integration was serious cause of slowness in the delivery of medical service. Various patients have died as taking records from a section to another takes long time. However, patient care notably improved within the recent decades due to PCB technology.

Now speed and efficiency in the service delivery are present because of simple information flow.

Medicine that is Data Driven – The drug design is typically based on data of a certain type of population. Simplicity in technology enables assembling of this data leading to quicker and better development of such medicines. Different equipment that made this possible use special PCBs.

The Mobile Health – Nowadays, smartphones and iPads made is quite simple for the specialists in medical field to receive and transmit information freely. Also, it made ordering drugs quite simple and also it is vital in the medical research and documentation right away.

Wireless Communication – Nowadays the medical field has systems ideal for conveying secure information and alerts quite similar to the lab tests. These typically make use of smartphones, clinical based special systems or web applications.

The improvement is great considering earlier inconvenience that was present for passing critical information.

It is quite common to see medical staff using apps for instant messaging along with walkie talkies. This can be said a positive departure through overhead PA systems and pager use.

All these are outcomes of advanced PCB development for refining communication systems in the health and medical sector.

Wearables for Medical Use – Nowadays, modern worn devices are there for helping monitor important information about patients. For football sport, players wear trackers for tracking, information such as the heart rate of players. With such information, it is possible to know whether a patient has infection or has the chances of an attack.

Design and Fabrication of Medical PCBs

Medical application PCBs need to get designed with considerations for the reliability, repeatability and quality. Besides, also they have to be traceable, strong and durable. Also, these are a few qualities that have to be taken in consideration on designing the PCBs.

Here is the breakdown of step-by-step medical PCB board design process:

Drawing initial Schematic

Here relevant information must be taken from client and it needs to be used for creating schematic drawing. The specifications are noted on one side. Some captured details can be medical PCB board type, power, and materials among various others. Absolute accuracy is required for all these.

Prepare Layout After Scanning

Next step would be to scan and then upload drawing in PCB designing software. Also begin adding requirements of the client onto one after the another.

Look upon Critical Factors

Certain vital factors are to be considered upon designing medical application PCBs. Some aspects are split planes, pin number component selection and split planes.

Proper Power Splitting

For reducing noise levels and crosstalk in PCB, there isn’t any requirement for electric power and ground planes diversification. There must be some higher Signal-to-Noise Ratios (SNRs).

Various Ground Layers

Make various ground layers on PCB base. The layers help in minimizing SNR levels and noise. Also you get enhanced reliability and PCB performance.

Reviewing BOM

Components get checked for ascertaining that they bare required levels for tolerance. Both OEM and PCB designers must perform the BOM review together.

Checking Components

Confirm that you must use best components according to requirements.

Prepare Alternative Component List

Also, you must have the option of alternative component for using when chosen ones fail for meeting requirements. This also helps in saving spent time in PCB designing.

Checking Alternative Components

Just as done with selected components, check on alternate components to know their failure and success ratings.

Create Drawing for Assembly

It is ideal for avoiding assembly mistakes and fabrication. Make sure to take note of revision levels if changes are done in original design.

Make Sure to Indicate Test Points in Design

You need to identify and then indicate points where testing remains ideal for board. For reduction in the total error count, you can have as much as points for testing as possible.

Being among the most sophisticated industry nowadays, the sensitivity of the medical field is a lot about use of hi-tech medical electronic devices and to get the top-notch performance, all these devices and equipment should be available with highly advanced circuitry.

Due to this reason, the medical PCBs are most vital to get enhanced functionality in the sector, mainly in medical service delivery and research field. For achieving the best outcomes, make sure to adhere to strict standards for medical PCB board design and assembly stages.

Aluminum Based PCB Manufacturer: The Engineering Knowledge

Aluminum based PCB manufacturer has become popular over a couple of years. Electronic industries across the globe are turning towards aluminium-based Printed Circuit Boards. The unlimited advantages including flexibility, reliability, and efficiency have made these Printed boards an imperative part of modern electronics.

Aluminum PCBs are essential for modern and compact electronics. The great news is that Printed Circuit boards are no longer limited to just the traditional ones. On the contrary, today, we have numerous types of PCBs, serving different purposes.

In the course of this article, we are going to talk about one of the most popular Printed Circuit Board type, Aluminum Printed Circuit Boards. So, without any further delay, let’s learn about Aluminum PCBs.

Aluminum Printed Circuit Board

Aluminum Printed Circuit boards are extremely common among the light-emitting diodes. The reason being, they have a high heat dissipation factor. Below, we have briefly described the structure of the Aluminum Printed Circuit board.

Structure of Aluminum

Circuit Copper Layer

In the manufacturing of Printed Circuit board, the first thing that you need to do is to etch a copper layer. Most manufacturers use electrolytic copper foil for the etching process. It is important that the etching process is completed with the utmost care.

After all, the etching layer plays a vital role in PCB connections and assembling. The aluminum Printed Circuit boards have a greater capacity of carrying higher current. This is another reason; industries today prefer Aluminum PCB instead of the traditional FR-4.

Insulating Layer

The core technology of aluminum Printed board is its insulating layer. A good insulation layer ensures the quality and reliability of the Printed Circuit Boards. It also defines the heat conduction standards. The insulating layer of the aluminum substrate is perhaps the biggest barrier in the power module structure.

High thermal conductivity of the insulation layer ensures that the heat is spread uniformly and it does not cause any damage. The device’s decreased operating temperature ensures device efficiency, effectiveness, and extends its lifespan.

Metal Substrate

There are several factors that play a vital role in finalizing the metal substrate of the Printed Circuit Board. For instance, the hardness, expansion coefficient, surface state, thermal conductivity, cost, and several others.

When you consider all these factors, you would be easily able to narrow down your choice to one or two metal substrates. Focusing on different factors will help you choose different metal substrates. For example, if your main focus is on technical performance and reduced cost, you should talk to aluminum based PCB manufacturers such as KingPCB.

KingPCB would be able to provide diversity in terms of aluminum plates. For instance, you can choose from 6961, 1060, 5052 and so on aluminum plates. Aluminum PCBs work effectively for all electronics.

Aluminum PCB Performance

Below are some important performance factors of Aluminum Printed Circuit Boards.

Thermal Dissipation

Some of the most common substrates of Printed Circuit Boards such as CEM, FR4 are poor thermal conductors. To ensure the longevity of the electronics, it is critical to dissipate their heat efficiently.

Lack of proper thermal dissipation would lead to high temperature resulting in complete machine failure. To avoid this particular issue, led PCB Board manufacturers now use aluminum substrate.

Aluminum is an excellent heat dissipation; therefore, it can effortlessly resolve this problem without investing additional cost.

Thermal Expansion

To alleviate the problem of thermal expansion on Printed Circuit Boards, the manufacturer now uses Aluminum substrate. Aluminum has excellent thermal expansion capability. The increased expansion ability of Printed Circuit boards has a positive impact on the electronic it is integrated into.

For instance, the thermal expansion of aluminum enhances the reliability and durability of its designated electronics. In addition, the aluminum substrate is excellent for resolving the SMT contraction and thermal expansion.

Dimension Stability

Another great performance factor aluminum Printed Circuit Board is its dimensional stability. So, far, we have learned that the aluminum substrate offers higher stability in comparison to the traditional insulating material of PCBs.

There is just a 2.5 to 3.0 percent of dimensional change in the aluminum substrate after heating it from 30 ° C to 140-150° C.

Types of Aluminum Printed Circuit Boards

When we say aluminum Printed Circuit Boards, we are referring to a number of aluminum PCBs. However, digging a little deeper would help us understand that there are several types of Printed Circuit Boards.

Below are the most common aluminum Printed Circuit Boards.

Flexible Aluminum Printed Board

Flexible Aluminum PCB is extremely efficient and effective for modern and compact devices. You can integrate it into extremely small devices. They compromise of three main layers including the conductive circuitry layer, flexible dielectric insulation, and the aluminum substrate.

All these three layers together make flexible PCBs the top choice. Led PCB Board manufacturers mostly offer their clients flexible PCBs especially when they are designing and developing small electronics.

To construct the insulation layer, the manufacturer uses ceramic plasters and polyamide. Using these materials ensures a higher level of thermal conductivity. They ensure that the heat transfer between the circuit to the aluminum substrate is smooth.

In addition, they ensure that heat energy scatters properly. Below are the perks of using Flexible Aluminum Printed Circuit Board.

Heat Transfer

The presence of aluminum along with the insulation layer ensures high thermal competences. In comparison to the fiberglass, the dielectric layer has the capability of transferring heat in a more reliable and efficient manner.

It can transfer heat ten times more efficiently. The effective heat transfer avoids any sort of destruction that would result due to overheating. It allows the circuity boards to smartly tackle a large amount of current.

Less Weight

Regardless of the type, Aluminum Printed Circuit Boards are extremely lightweight. So, it is safe to say that the flexible Aluminum PCB is also lightweight. The reason being, aluminum itself is not heavy at all.

Durable

The flexibility factor enhances the life of the Printed Circuit Board. This then has a favorable impact on its desired machine.

Less Price

Cost efficiency is the key feature of all types of Printed Circuit boards. The material, aluminum, itself is affordable.

Hybrid Aluminum Printed Circuit Board

In Hybrid Aluminum PCB processing of the nor thermal or insulating substance is completed separately. After that, it joins the aluminum substrate. You would need to use FR-4 resistance in order for it to have 2 and 4 layers.

When you use a non-thermal substance for construction it ensures high heat dissipation and high stiffness. In addition, you do not need a heat sink for Hybrid Aluminum Printed Circuit Boards.

Multilayer Aluminum Printed Circuit Boards

Aluminum Based PCB manufacturer offer multilayer Aluminum PCBs to industries producing power supplies modules. These Printed Boards use a massive amount of heat-conducting material.

Moreover, they come with an additional layer of dielectric material. They use a copper layer of the epoxy layer to cover the sheet of the insulated metal substrate.

Manufacturing Challenges of Aluminum PCB

Aluminum based PCB manufacturer uses all most the same process for the manufacturing of all Aluminum Printed Boards. Therefore, they tend to face some common challenges.

Copper Etching

The copper etching is among the most common challenge. Since the copper foil used for Aluminum PCB is slightly thicker, therefore etching it properly requires skills and the right machinery. Etching also needs width compensation.

Solder Mask Printing

Again, the thick copper causes a problem in solder mask printing. The thicker copper layer often results in a vast difference between the base board, and the trace surface. Thus, it would make solder mask printing a daunting task.

So, the manufacturers often use two-time solder mask printing. In addition, ensure that the solder mask oil is of great quality.

Take Away

Aluminum Printed Circuit Boards are the demand for modern electronics. Therefore, Aluminum based PCB manufacturer, such as King PCB, offer outstanding PCB manufacturing services. They ensure to deliver only high quality, reliable, and efficient Printed Circuit Boards.

They have vast experience, learned staff and modern technology to design and develop sophisticated and complex printed circuit boards.

Check the impact of flexible PCB in the modern mobile phone industry and its expected industry growth

What is a flexible PCB material?

The flexible PCB material includes a flexible substrate made of a dielectric layer. It provides a flexible substrate for conductive traces to be etched on it. For flexible PCB manufacturer with clear portability and flexibility requirements, flexible PCB materials are the best choice.

Polyimide or polyester materials can be used as the dielectric layer. Moreover, copper is also a common material for printed circuits on flexible printed circuit boards. The thickness of the copper layer here may be 0.0001〃 or less to 0.010〃 or more.

Due to the high oxidation tendency of copper, you need to cover the copper traces with a protective layer. Similarly, gold and solder are usually the materials of choice for this protective cover.

This is because gold and solder have excellent electrical conductivity and factor capabilities.

Generally, flexible PCB manufacturer use flexible PCB materials incorrectly. Moreover, it is consistent with a set of rules applied to rigid PCB materials. Flexible PCCB materials differ in how they are used to manufacture PCBs. And the applications they support.

The role of flexible PCB manufacturer in electronics consumer industry

FPC is mainly used in consumer electronics products, and mobile phones are its largest application market. According to Prismark data:

• the global FPC output value reached approximately US $ 12.8 billion in 2018 and
• is expected to reach approximately US $ 14.9 billion by 2022.
• with an annual compound growth rate of 3.87%.
• Downstream application structure, consumer electronics products are the main application areas of FPC.
• of ​​which smartphones and tablets account for 40% and 16% respectively.

Occupying the vast majority of the FPC downstream application market. In recent years, with the rapid development of automotive electronics, the proportion of FPC demand gradually increased to 14%.

flexible PCB manufacturer soldering process

Manually soldering the flexible board to the circuit board is the cheapest process of all flexible board welding processes. And some can even work without the use of jigs. But its welding quality is also the most unreliable process for flexible PCB manufacturer.

Because manual welding is easy to cause:

• empty welding
• Virtual welding
• false welding
• bridge short circuit and other quality problems.

This is because the soft board is easy to move. Or lift when the soldering iron head is removed and the solder has not been cured during manual soldering. After the solder is cured, false soldering and empty soldering are formed.

Therefore, it is best to use a heavy object to press on the soft board during manual welding until it is removed after welding. Furthermore, it can greatly improve the welding yield. In addition, the gold finger soldered on the flexible board is preferably opened with a through hole (PTH).

Simultaneously, it can increase the vision to confirm whether the soldering is good. And can also reduce the risk of short circuit of overflowing tin.

Laser soldering process by flexible PCB manufacturer

Laser soldering relies on the excitation of laser energy. To transform into heat energy to achieve the purpose of soldering. So, its soldering is usually used to directly heat the laser where it hits the solder. This process is simple for a professional flexible PCB manufacturer.

In fact, work bears feel that laser welding is not very suitable for FPC soldering on PCBs. Perhaps work bears have insufficient experience. Moreover, it is always thought that laser is more suitable for welding of connectors.

Because there are many FPC designs that do not have via holes. Subsequently, it causes the laser light cannot directly hit the solder. And the laser light cannot be fully heated.

In addition, this type of laser welding equipment is usually a dedicated machine and a non-universal machine. Its energy is generally not suitable for performing other operations. So the equipment cost is not cheap.

What is flexible PCB manufacturer prenatal treatment of flex pcb?



There are three aspects for a flexible PCB manufacturer that need to be dealt with in prenatal pretreatment. Therefore, these three aspects are all done by engineers.

1. The first is the FPC board engineering evaluation.Mainly to evaluate whether the customer’s FPC board can be produced. And whether the company’s production capacity can meet the customer’s board making requirements
2. unit cost.if the engineering assessment is passed. Then the next step is to prepare materials to meet each production link. Similarly, the supply of raw materials. And finally, the engineer processes the customer’s CAD structural drawings. Gerber line information and other engineering documents to suit the production environment. And production specifications of the production equipment
3. Then devolves the production drawings. And other materials to the production department. Various departments such as document control and procurement enter the regular production process.

The importance of flexible PCBs

You are already thinking, “ flexible PCB manufacturer have amazingly rigid PCB boards. Why do we even need flexible PCB materials? Well, there are several compelling reasons to support the transition to PCB-flex. Let us look at some of them.

Flexible PCB is easier to pack

We are now in the era of the rise of nanoelectronics. Generally, this means that we need to install more components in a compact area. Simultaneously, with a flexible PCB, this will prove easier than you think. Studies have shown that:

compared with rigid pcb, flexible pcb can save 60% of the weight and space.

These extremely tiny parts are now being welded with microscopes, tweezers and other small tools.

Flexible PCB brings more reliable and flexible components

Remember, flexible PCBs reduce the interconnection required. This means less solder joints and contact creases. Of course, this means that potential sources of failure are minimized and performance is generally improved. This is why flex pcb is now ubiquitous for flexible PCB manufacturer in medical applications.

At this year’s Consumer Electronics Show (CES), bug electronics companies launched high-profile flexible screen commodities in a high-profile manner. Allowing flexible screens to enter the masses’ vision for a while and become the focus.

The newly introduced flexible circuit board has significant advantages. Moreover, It is frivolous and easy to carry. Moreover, it can be folded into a paper and placed in the pocket of the consumer.

Currently, there are three major concerns for flexible commodities:

1. Flexible touch screen
2. Moldablecircuit board
3. Flexible battery

The increasing demand of flexible PCB manufacturer in mobile phone industry

flexible PCB manufacturer is contributing in mobile industry on massive level. Driven by the demand for thinner and thinner applications. Such as downstream smart phones, the share of FPC is expected to continue to expand.

With the rapid development of the downstream electronics industry in recent years. The demand for electronic products continues to expand and gradually develops towards diversification and customization.

As an important branch of PCB, flexible PCB manufacturer has more excellent physical characteristics than traditional rigid circuit boards.

• FPC can be bent
• light and thin,
• and has excellent electrical properties,

It can greatly reduce the volume and weight of electronic products. Furthermore, meet the needs of electronic products to develop in the direction of:

1. high density
2. miniaturization
3. thinness, and high reliability.

In recent years, the FPC market has sprung up. And its proportion has continued to expand. Subsequently, becoming one of the core driving forces for the growth of the global PCB industry.

Conclusion- flexible PCB manufacturer advantages

flexible PCB manufacturer divides FPC according to the number of layers. Similarly, FPC can be classified into:

• single-layer FPC
• double-layer FPC
• multi-layer FPC

Generally, related manufacturing technology is based on single-layer FPC manufacturing technology. Subsequently, through lamination technology Implementation, as follows:

FPC has the advantages of:

1. high wiring density
2. light weight,
3. Thickness
4. bendability, and
5. high flexibility.

It can withstand millions of dynamic bending without damaging the wires. It can be arbitrarily moved and stretched according to the spatial layout requirements to achieve three-dimensional assembly.

The integration of device assembly and wire connection has advantages that other types of circuit boards cannot match.

FPC has been widely used in mobile smart terminals by flexible PCB manufacturer such as

• smartphones
• tablets, and
• wearable devices.

It is by far the demand for miniaturization of electronic products and convenient mobility.

Aluminum substrate PCB production specifications

What is aluminum pcb?

It is a board in which an aluminum pcb manufacturer pastes a thin board is on an aluminum board.
Since it has excellent heat dissipation. It is ideal for circuits such as:

1. high-power LEDs
2. large-capacity power supply circuits, and
3. circuits that drive large-current loads, where conventional rigid boards will heat up.

Printed circuit board (PCB) is one of the two major parts manufacturing industries in the domestic electronics industry. With the vigorous development of the electronic information industry, the printed circuit board industry has grown faster.

PCB (according to a circuit design, the circuit components connected to the electric wiring pattern of the wiring will be formed. And then to design the specified machining, surface treatment, etc. On the electrical conductivity of the insulator body weight. As far as aluminum pcb manufacturer constitutes the circuit board before matching the electronic parts.

The function of this type of product is to use the electronic circuit formed by various electronic parts. As a circuit board to play the function of various electronic components to achieve the purpose of signal processing.

Pollution from aluminum pcb manufacturer process

Subtractive method is used in the process. Only after the through-hole plating. The full-plate copper plating method is used. That is, after the through-hole and the plate are uniformly plated to the required specifications by electroplating copper. The positive etching resist is transferred to resist corrosion.

A dry film resist is engraved to protect the copper surface where the lines and vias are to be formed. The copper surface that is not protected by the resist is etched and etched away. And finally, the resist is removed

aluminum substrate PCB production specifications- aluminum pcb manufacturer

.

An aluminum pcb manufacturer must protect the aluminum base surface of the aluminum substrate with a protective film in advance during the PCB processing. Otherwise, some chemicals will attack the aluminum base surface.

Resulting in damage to the appearance. And the protective film is very easy to be injured and cause gaps. It requires that the entire PCB processing process must be inserted.

The hardness of the milling cutter used for the fiberboard gong board is relatively small. While the hardness of the milling cutter used for the aluminum substrate is large. The speed of production of fiberglass milling cutters is fast during processing. While the production of aluminum substrates is at least two-thirds slower.

The computer milled glass fiber board can only use the heat dissipation system of the machine to dissipate the heat. But aluminum pcb manufacturer must process the aluminum substrate with alcohol for the gong head.

What is aluminum pcb manufacturing and substrate proofing?

Aluminum substrate proofing tells you the production specifications of aluminum substrate pcb:

The aluminum base surface of the aluminum substrate must be protected with a protective film in advance during the PCB processing. Otherwise, some chemicals will attack the aluminum base surface, resulting in damage to the appearance.

And the protective film is very easy to be bruised and cause gaps. It requires from aluminum pcb manufacturer that the entire PCB processing process must be inserted.

The hardness of the milling cutter used for the fiberboard gong board is relatively small. While the hardness of the milling cutter used for the aluminum substrate is large. The speed of production of fiberglass milling cutters is fast during processing. While the production of aluminum substrates is at least two-thirds slower.

The computer milled glass fiber board can only use the heat dissipation system of the machine to dissipate the heat. But the aluminum substrate must be processed with alcohol for the gong head.



The advantages of aluminum pcb manufacturing compared with traditional FR-4 board:



1. aluminum pcb manufacturer provides good thermal conductivity.

The metal layer of the aluminum-based PCB board can quickly dissipate heat. Transfer the heat of the device, minimize the thermal resistance, and have good thermal conductivity.

2. More environmentally friendly

The aluminum-based PCB board does not carry substances harmful to human health. And the environment, and is more environmentally friendly than the FR-4 board.

3. High durability.

The FR-4 board may be rocked, bent, cracked, etc. During production and transportation; the ceramic substrate is also more fragile. The aluminum pcb manufacturer makes up for the shortcomings of the FR-4 board and the ceramic substrate, has a longer durability. And avoids board cracks caused by production and transportation.



The good heat dissipation function, insulation and durability of the aluminum-based PCB circuit board have laid its important position in the power hybrid IC. Aluminum substrates are widely used in industries such as:

• LED energy-saving lamps
• driving devices for automobiles
• computers and other equipment
• audio equipment and power systems.

aluminum pcb manufacturer price

The same PCB, FR4 is priced at 30 yuan. And the aluminum-based PCB is as high as 950 yuan.

A considerable part of the LED lights on the market are aluminum-based PCBs. And they do not feel much more expensive than other ordinary aluminum pcb manufacturer. This shows that the cost of aluminum-based PCBs is not too high. Am I being arbitrarily quoted by profiteers?



Realization of the technology of conductive hole plug hole by aluminum pcb manufacturer

For aluminum pcb manufacturer in pcb mounting, the requirements for via hole plug holes must be flat. And the convex and concave are plus or minus 1 mil. And there should be no red or tin on the edge of the via hole. The via hole contains tin beads in order to reach customers.

The requirements of the via hole plug hole process can be described as varied. The process flow is particularly long. The process control is difficult. Often there are oil drops during the hot air leveling and green oil solder resistance test. Oil explosion and other problems occur after curing.

According to the actual conditions of production:

• the various plug hole processes of PCB are summarized.
• And some comparison and elaboration are made in the process.



Note: The working principle of aluminum pcb manufacturer hot air leveling is to use hot air to remove the excess solder on the surface. And holes of the printed circuit board. The remaining solder evenly covers the pad. And the unresisted solder lines and surface packaging points. It is the surface treatment method of the printed circuit board.

Demand for special printed wiring boards with heat dissipation measures is expanding. Previously, it was limited to some markets for backlights for LCD TVs. Mainly for lighting fixtures equipped with light emitting diodes (LEDs). But recently there is a movement to adopt high-brightness LEDs for car headlights is accelerating.

What is aluminum pcb manufacturing heat dissipation?

For aluminum pcb manufacturer, attention is focused on a metal-based high heat dissipation substrate. In which a high thermal conductive resin is pasted with an aluminum or copper plate. Furthermore, there are many cases where power devices such as power MOSFETs are mounted. And some ceramic substrates have been considered as alternatives.

It seems that progress has been made in the development of high heat dissipation resin substrate materials with a thermal conductivity of 10 W / mK class. And the advantages such as:

• cost reduction compared to competing ceramic substrates are evaluated.



Recently, aluminum pcb manufacturer has focused attention on aluminum substrates due to the evolution of LEDs.
An aluminum substrate is a substrate that is made of:

• an aluminum material and
• copper foil and
• an insulating layer.

Aluminum substrates have the advantage of being cheaper to manufacture than other metals. Since the copper foil is pressure-bonded with epoxy resin. It also has excellent heat dissipation, charging and processability.

Although releasing heat is called heat dissipation. If aluminum pcb manufacturer neglect heat dissipation, the life of the element will be shortened. And various problems such as deterioration of solder will occur, so be careful.
Other than aluminum, there are copper-based boards based on copper and iron-based boards based on iron.

But both have problems. Copper substrates are expensive, and iron substrates are not available to many manufacturers.

When choosing a board, it is important to know the aluminum pcb manufacturer characteristics. If you compare the power LED mounted on an aluminum board with the power LED mounted on another board, you can clearly see the difference in heat dissipation.
