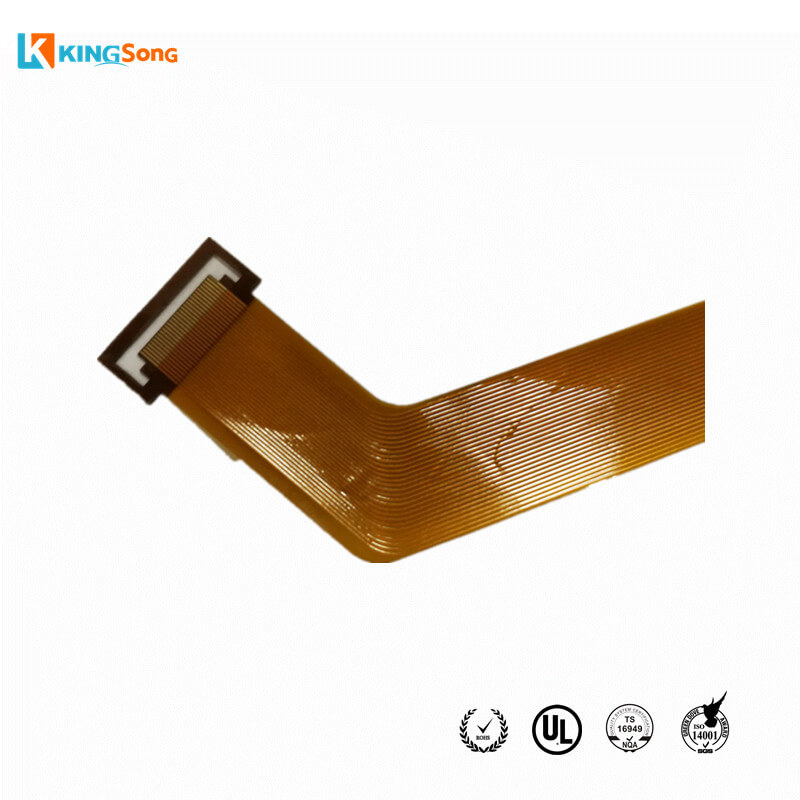

Electronic Flexible PCB Fabrication With Gold Finger
Min. Order Quantity: NO
Supply Ability: 30~50 thousand ㎡/Month
Service: EMS/OEM/ODM
Payment Terms: T/T, Paypal, WU, etc.
Port: Shenzhen
With more than 10 years of PCB manufacturing experience, KingSong provides high-reliability products and provides our customers with high-value, high-quality, and guaranteed quality production services.
| Electronic Flexible PCB Fabrication With Gold Finger | |
| Brand Name | KingSong/Customized |
| Layer | Flex board: 1-6Layers Flex-Rigid Board: 2-8Layers |
| Material | CCL, PI, PET, PEN, FR-4 |
| Base Material | Polyimide+FR4 stiffener |
| Solder mask color | Yellow cover film |
| Silkscreen color | White |
| Final Thickness | Flex board: 0.002″ – 0.1″ (0.05-2.5mm) Flex-rigid board: 0.0024″ – 0.16″ (0.06-4.0mm) |
| Surface Treatment | Lead-free: ENG Gold; OSP, Immersion silver, Immersion Tin |
| Surface Finishing | enig |
| Test Way | 100% E-Test |
| Standard | IPC-Class2/Class3 |
| Min Trace | Inner: 0.5oz: 4/4mil Outer: 1/3oz-0.5oz: 4/4mil |
| Min Width /Clearance | 1oz: 5/5mil 1oz: 5/5mil 2oz: 5/7mil 2oz: 5/7mil |
| Min Hole Ring | Inner: 0.5oz: 4mil 1oz: 5/5mil 2oz: 5/7mil Outer: 1/3oz-0.5oz: 4mil 1oz: 5/5mil 2oz: 5/7mil |
| Copper Thickness | 1/3oz – 2oz |
| Board Thickness | 0.15mm |
| Max / Min Insulation Thickness | 2mil/0.5mil (50μm/12.7μm) |
| Min Hole Size and Tolerance | Min hole: 8mil Tolerance: PTH±3mil, NPTH±2mil |
| Min Slot | 24mil x 35mil (0.6×0.9mm) |
| Solder Mask Alignment Tolerance | ±3mil |
| Silkscreen Alignment Tolerance | ±6mil |
| Silkscreen Line Width | 5mil |
| Gold Plating | Nickel: 100μ” – 200μ” Gold: 1μ”-5μ” |
| Immersion Nickel / Gold | Nickel: 100μ” – 200μ” Gold: 1μ”-5μ” |
| OSP | Film: 8μ” – 20μ” |
| Test Voltage | Testing Fixture: 50-300V |
| Profile Tolerance of Punch | Accurate mould: ±2mil Ordinary mould: ±4mil Knife mould: ±8mil Hand-Cut: ±15mil |
Delivery time:
Flexible PCB: 5-7 working days,
Rigid-flex PCB: 8-15 working days.
Package:
The inner vacuum packing, Outer standard carton box packing.
Shipping:
1. By DHL, UPS, FedEx, TNT, etc.
2. By sea for mass quantity according to the customer’s requirement.
If you need a quotation for your PCB projects, please provide the following info:
1. Quote, quantity.
2. Gerber file in a 274-x format.
3. Technical requirement or parameters (material, layer, copper thickness, board thickness, surface finishing, solder mask/silkscreen color…).
